FIRLEIGH HOUSE
Kerr AT Architects
Location Highlands, UK | Type Housing | Current Stage Completed in 2023
Involvement Stage 0 Strategic Definition - Stage 5 Construction | Software Vectorworks, SketchUp, Photoshop, Illustrator
Project Architect Michael D. Gilchrist
Project Description
The objective of this project was to design an extension and make internal alterations to accommodate the needs of the family’s two daughters, who both have a degenerative illness that will eventually require wheelchair use.
The design needed to be adaptable to the family’s evolving needs, providing flexible and welcoming spaces. We created an open-plan area with lowered kitchen islands and a wet room equipped with a gantry to ensure accessibility and inclusivity.
The design features a cantilevered glulam ridge beam with glulam feature rafters and timber rafters in between, allowing for a large uninterrupted span. The end gable incorporates a steel portal frame with expansive glazing overlooking the terrace and garden. Two bi-fold doors with flush thresholds seamlessly connect the indoors with the outdoors and are sheltered by a large canopy. The central focus of the design is on promoting family unity
Responsibilities
-
Developed a Vectorworks BIM model, a first for the office
-
.Collaborated with the Director to progress the design from Stage 0 through Stage 5.
-

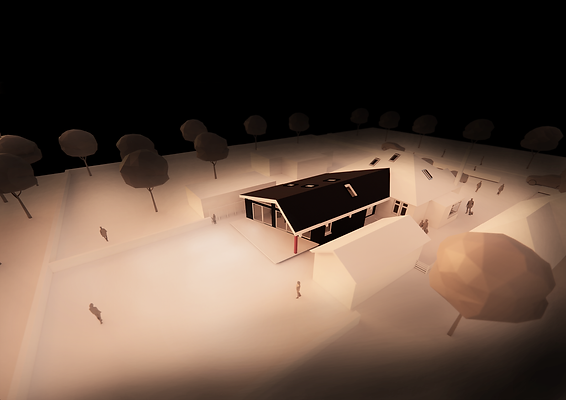

Produced all production drawings, 3D visuals, and renders.
-
Liased with the Client to finalise the Client Requirements and Final Project Brief
-
Managed the planning application and building warrant processes, maintaining correspondence with building standards.
-
Created all technical details and wrote detailed Specification.
-
Collaborated with the structural engineer to solve arising issues. No other consultants were used since this was a small buldings design.
-
Participated in design team meetings, conducted on-site inspections, and composed Site Meeting Reports.
-
Issued Interim Certificates
